C11 - Analisador de energia monofásico, leitura direta até 40A, 1 módulo de largura, saída por impulsos, medidas: corrente, tensão, energia ativa e fator de potência

ABB

C11 - Analisador de energia monofásico, leitura direta até 40A, 1 módulo de largura, saída por impulsos, medidas: corrente, tensão, energia ativa e fator de potência

Publicado: 19 de maio de 2016 · Categoria: Fichas técnicas

Deste documento

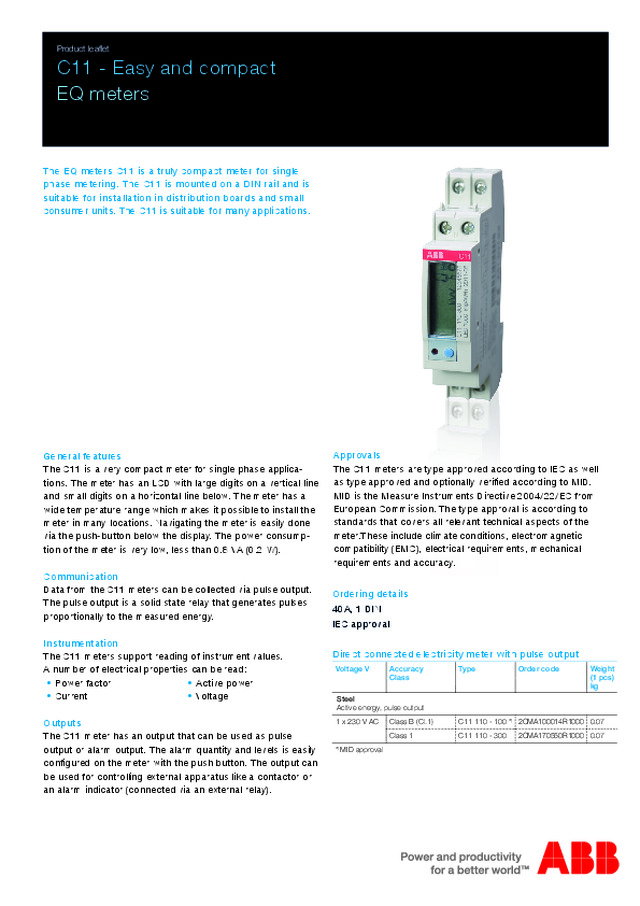

Product leaflet C11 - Easy and compact EQ meters The EQ meters C11 is a truly compact meter for single phase metering. The C11 is mounted on a DIN rail and is suitable for installation in distribution boards and small consumer units. The C11 is suitable for many applications. General features The C11 is a very compact meter for single phase applications. The meter has an LCD with large digits on a vertical line and small digits on a horizontal line below. The meter has a wide temperature range which makes it possible to install the meter in many locations. Navigating the meter is easily done via the push-button below the display. The power consumption of the meter is very low, less than 0.8 VA (0.2 W). Communication Data from the C11 meters can be collected via pulse output. The pulse output is a solid state relay that generates pulses proportionally to the measured energy. Instrumentation The C11 meters support reading of instrument values. A number of electrical properties can be read: Power factor Active power Current Voltage Outputs The C11 meter has an output that can be used as pulse output or alarm output. The alarm quantity and levels is easily configured on the meter with the push button. The output can be used for controlling external apparatus like a contactor or an alarm indicator (connected via an external relay). Approvals The C11 meters are type approved according to IEC as well as type approved and optionally verified according to MID. MID is the Measure...
