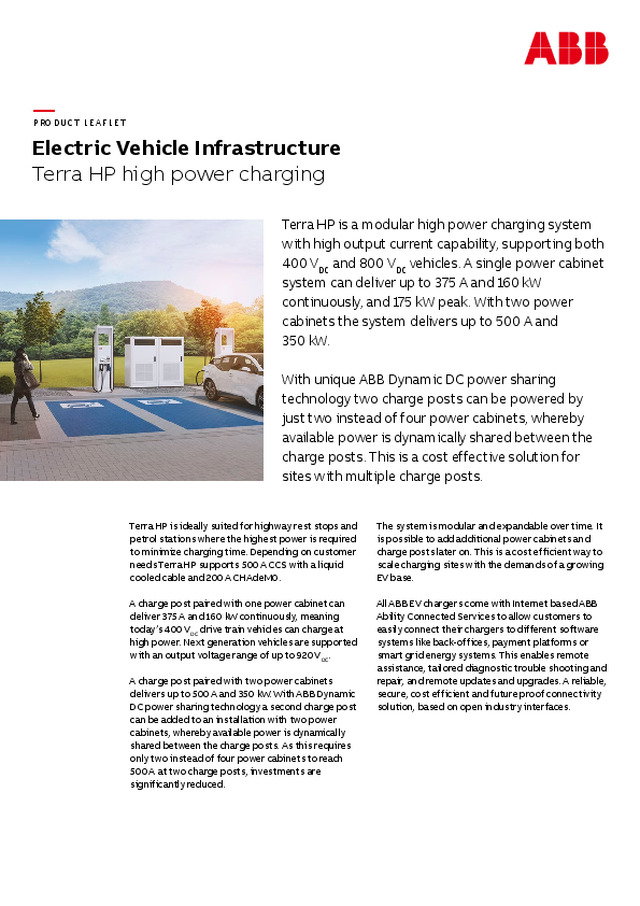

PRODUCT LE AFLET Electric Vehicle Infrastructure Terra HP high power charging Terra HP is a modular high power charging system with high output current capability, supporting both 400 VDC and 800 VDC vehicles. A single power cabinet system can deliver up to 375 A and 160 kW continuously, and 175 kW peak. With two power cabinets the system delivers up to 500 A and 350 kW. With unique ABB Dynamic DC power sharing technology two charge posts can be powered by just two instead of four power cabinets, whereby available power is dynamically shared between the charge posts. This is a cost effective solution for sites with multiple charge posts. Terra HP is ideally suited for highway rest stops and petrol stations where the highest power is required to minimize charging time. Depending on customer needs Terra HP supports 500 A CCS with a liquid cooled cable and 200 A CHAdeMO. The system is modular and expandable over time. It is possible to add additional power cabinets and charge posts later on. This is a cost efficient way to scale charging sites with the demands of a growing EV base. A charge post paired with one power cabinet can deliver 375 A and 160 kW continuously, meaning todays 400 VDC drive train vehicles can charge at high power. Next generation vehicles are supported with an output voltage range of up to 920 VDC . All ABB EV chargers come with Internet based ABB Ability Connected Services to allow customers to easily connect their chargers to different software systems...
