Load management with Ekip Power Controller for SACE Emax 2 (EN)

ABB

Load management with Ekip Power Controller for SACE Emax 2 (EN)

Publicado: 28 de abril de 2015 · Categoria: Cadernos técnicos

Deste documento

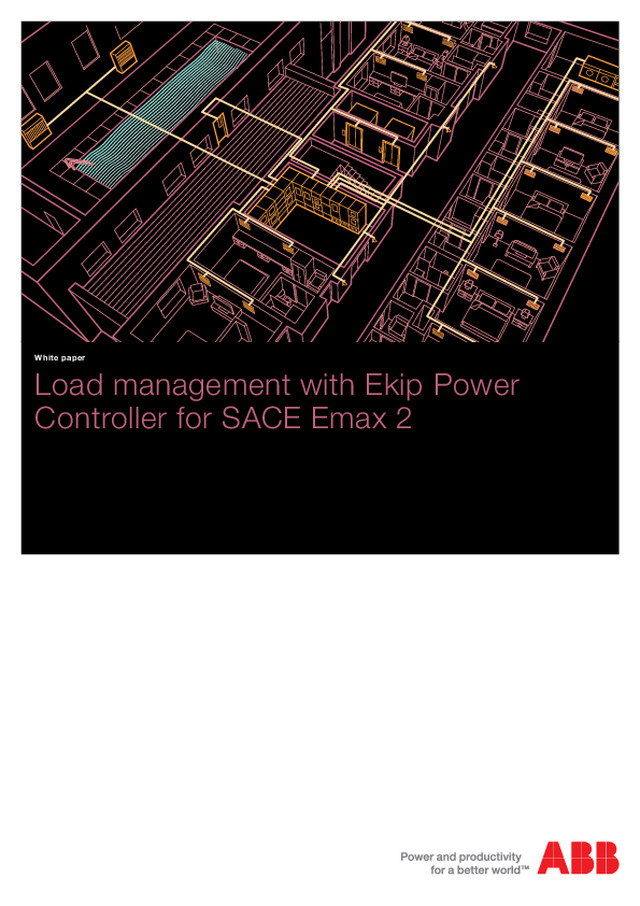

White paper Load management with Ekip Power Controller for SACE Emax 2 Load management with Ekip Power Controller for SACE Emax 2 Index Introduction .................................................................................2 1 Load management with Ekip Power Controller for SACE Emax 2..........................................................................3 2 Electricity billing.......................................................................4 3 Description of operation..........................................................6 3.1 Example of operating logic................................................10 4 Settings and connections......................................................12 4.1 Scenario A: same switchboard..........................................16 4.1.1 Scenario A1 wired connections, controlled loads 5.................................................................16 4.1.2 Scenario A2 wired connections, controlled loads > 5.................................................20 4.2 Scenario B: different switchboards...................................24 4.2.1 Scenario B1 connection to SACE Emax 2 circuitbreakers through Ekip Link......................................24 4.2.2 Scenario B2 Connection through Ekip Link to SACE Emax 2 circuit-breakers and to Ekip Signalling 10K.........................................................25 4.3 Scenario C: connection with two transformers.................27 5 Application...
