SACE Tmax PV | Adaptabilidade, versatilidade e total liberdade continuam (EN)
ABB

SACE Tmax PV | Adaptabilidade, versatilidade e total liberdade continuam (EN)

Escolha o sistema mais adequado para qualquer necessidade solar.

ABB

SACE Tmax PV | Adaptabilidade, versatilidade e total liberdade continuam (EN)

Publicado: 27 de janeiro de 2015 · Categoria: Cadernos técnicos

Escolha o sistema mais adequado para qualquer necessidade solar.

Deste documento

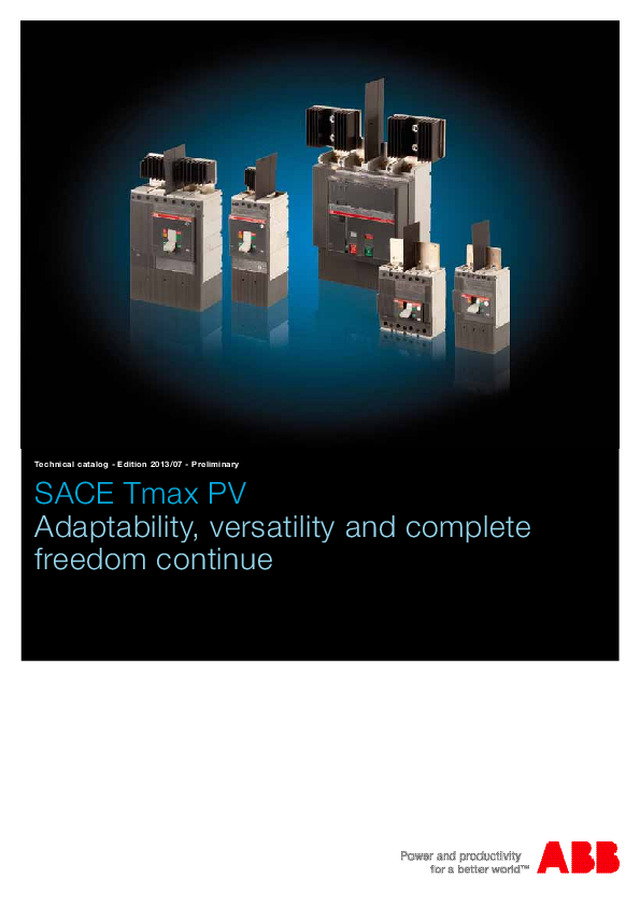

Technical catalog - Edition 2013/07 - Preliminary SACE Tmax PV Adaptability, versatility and complete freedom continue SACE Tmax PV automatic molded case circuit-breakers and molded case switch-disconnectors The Tmax PV line of IEC switch-disconnectors and UL switch-disconnectors and molded case circuit-breakers expands upon Tmax T Generation’s history of offering complete adaptability, versatility and freedom for any type of application. Using the Tmax PV line, the customer is able to select the most appropriate device for any Solar PV need. Under IEC 60947-3, Tmax PV offers switch-disconnectors to meet standard 1100V DC applications. In addition, it offers the versatility of extended capacities to 1500V DC for the increasingly demanding solar applications of today’s market. Finally, connection jumpers are an available option for the IEC switch-disconnectors to increase safety and ease of installation. Tmax Automatic Circuit-breakers according to IEC up to 1000V DC are available as a special version of the standard Tmax line. Information about that range can be found in the Tmax technical catalogue. 2 | 1SDC210054D0201 | ABB catalogue Common data Operating temperature [°C] -25 °C … +70 °C Storage temperature [°C] -40 °C … +70 °C Numbers of poles 4 Version fixed Under UL 489B, Tmax PV offers adaptability in the form of the availability of both switch-disconnectors and molded case circuit-breakers. Multiple formats allows for the ability of a uniform end product and shared...
