Brochura de selecção de tubos LED T5 e T8

Os Philips MASTER LEDtubes permitem uma instalação 100% segura e sem complicações. Ostubos EM/de rede eléctrica e InstantFit HF encaixam directamente nas luminárias existentes. A gama InstantFit tem a maior compatibilidade com os balastros existentes no mercado. Além de uma gama completa de tubos LED T8, que abrangem uma grande variedade de aplicações, existem tubos com fluxo luminoso de até 3900 lm. Esta nova gama inclui a primeira substituição directa de LED 1:1 realmente isenta de problemas para tubos fluorescentes T5 de 1500 mm. (Em inglês)

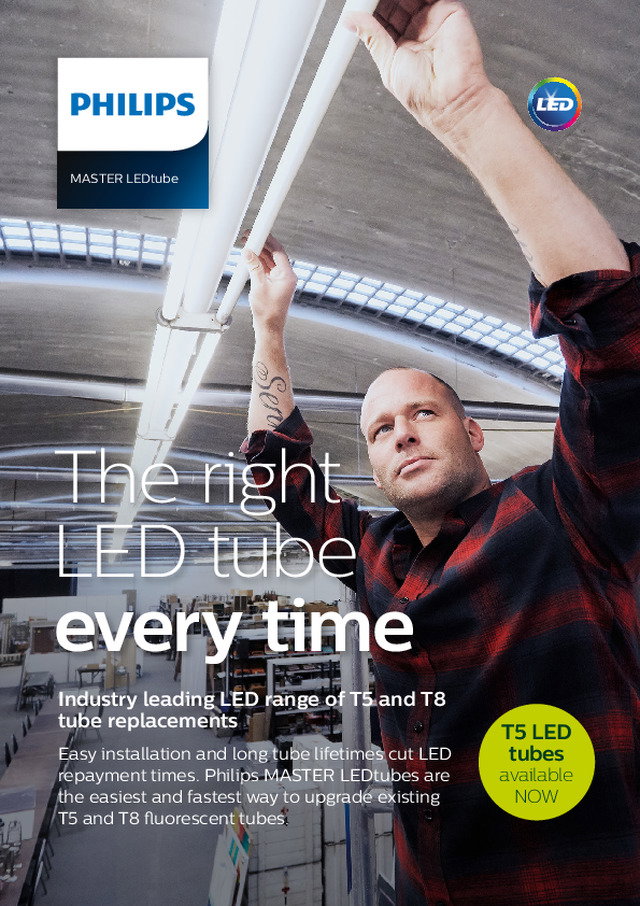

The right LED tube every time Industry leading LED range of T5 and T8 tube replacements Easy installation and long tube lifetimes cut LED repayment times. Philips MASTER LEDtubes are the easiest and fastest way to upgrade existing T5 and T8 fluorescent tubes. T5 LED tubes available NOW MASTER LEDtube

With LEDs taking around half the energy of fluorescent tubes, the energy savings from retrofitting can pay for the tubes themselves within just a few months. From 24/7 usage downwards, it’s the installation costs and tube lifetimes that overwhelmingly set actual repayment times. Besides a complete range of T8 LED tubes covering a large variety of applications, we now have tubes with light outputs up to 3900 lm. The range includes the first truly hassle-free LED 1:1 replacement for 1500mm T5 fluorescent tubes – another in Philips’ long history of ground-breaking lighting innovations. Bright easy-to-fit LED tubes that last and last T5 LED tubes available NOW

Fast installation and reliably long life Philips MASTER LEDtubes have 100% safe, hassle-free installation with a simple lamp-for-lamp replacement. Our EM/mains and InstantFit HF tubes fit straight into existing luminaires. Our InstantFit range works with 2x more existing ballasts (600, 1200 and 1500mm InstantFit version lists are regularly updated. Please refer to the site www.philips.com/ledtube for the latest information about ballast compatibility. The 50,000 hour guaranteed lifetime outshines fluorescents up to 35000 hours to halve maintenance costs. Including the price of tube, installation and maintenance they pay for themselves within 9 months for permanently lit sockets to 2.4 years for 10 hours/day. Uniform light distribution with exceptional efficiency Philips unique design creates a perfectly uniform light, and there are different light outputs to fit most applications. The High Output (HO) range offers high light levels for retail and industry. The Ultra-efficient Ultra Output (UO) has best in class efficiency (up to 156 Lumen/W) and the exceptional light quality and output needed for offices and healthcare. There are warm white (3000K), cool white (4000K) and cool daylight (6500K) versions. We have the widest range on the market, with standard 1200mm and 1500mm tubes along with special 600, 900 and 1800m versions. Each replaces a different fluorescent type, ensuring a light for every application including covered car parks, offices, schools, industry, healthcare, warehouses, cold rooms and corridors. And they work from -20 to +45°C to suit extreme environments thanks to the unique product design and excellent construction quality. In order to justify high quality of our professional LED lamps, we’ve extended our warranty to up to 5 years. Our LED tubes won’t flicker or cause glare. They switch on instantly with excellent color consistency and uniform visual appearance. All T8 MASTER LEDtubes have rotating end-caps to easily direct the light where it is needed. All in all, an attractive energy saving and mercury-free alternative to fluorescent tubes. Dimming functionality Building on the latest InstantFit technology innovation Philips Master LEDtubes can now offer dimming functionality for defined tube/ballast combination. Please refer to the site www.philips.com/ledtube for the latest update on MASTER LED tube InstantFit range/dimming ballast compatibility. 5 up to YEARS Guaranteed Performance

If you’re an installer there are even more reasons for you to choose Philips MASTER LEDtubes. As you’d expect from the world’s leading name in lighting, our quality and attention to detail mean that we can also make your life safer and easier. HF compatibility No wires to replace, no hassle changing drivers; our InstantFit solution works with High Frequency electronic ballasts, making it easy and safe for all installation methods. All you have to do is slot the tube into your existing fitting. Pin safety With Philips products you can safely touch the other end-cap when installing the tube. The integrated driver is also safely isolated from touchable parts. Philips LED tubes adhere to all UL and IEC pin safety requirements. Rotating end-caps In many applications the pin fitting needs to be rotated. This can be a problem as LED tubes only provide directional light. Our T8 MASTER LEDtubes have rotating end-caps to allow you to rotate the tube by up to 90 degrees. So you can always direct the light to best effect. The installer’s choice

Does your luminaire have a starter? This illustration shows its typical location in an open or closed luminaire with 1200 and 1500 mm tubes. Yes. The luminaire works with ElectroMagnetic ballasts. Simply replace the old starter with the new (EM) LED starter included in the packaging. Choose the LED tube with one ring on the cap. No. The luminaire works on High Frequency (HF) electronic ballasts. Choose MASTER LEDtube InstantFit with the end-cap with two rings. No need to change drivers or rewire. It’s a plug and play solution that works straight out of the box. Quick and easy installation . Check the ballast compatibility list on www.philips.com/ledtube No. Your luminaire works on High Frequency (HF) electronic ballasts but you can’t use MASTER LEDtube InstantFit or your ballast is not compatible. Cut wires, remove ballast and connect direct to mains. Use the MASTER LEDtube EM with one ring on the cap. Finding the right fit for T8 tubes MASTER LEDtube L N EM HF 1 2 3

Ultra output 2500 - 3700 lumen • 1200 mm • 1200 mm InstantFit • 1500 mm • 1500 mm InstantFit High output 2100 - 3100 lumen • 600 mm• 600 mm InstantFit• 1200 mm • 1200 mm InstantFit• 1500 mm • 1500 mm InstantFit Ultra output High output Office / School / Healthcare › Burning hours: usually 12 hrs /a day › Need for energy reduction and reducing maintenance costs › High quality of light needed and compliance with ergonomic norms › Light requirement: 500+ lux Best energy efficiency Best light output Best energy efficiency High output Best light output Car Park › Burning hours: 24/7› Ensure visibility and feeling of safety› Need for energy reduction and reducing maintenance costs › Withstand cold (er) temperatures› Light requirement: 200+ lux Ultra output High output Supermarket / Retail › Burning hours: 12 hrs /a day to 24/7› Enhance ‘green’ image of the brand› Need for energy reduction and reducing maintenance costs › Product enhancement on the shelf › Shatterproof thanks to plastic material› Light requirement: 500+lux Best energy efficiency Best light output Ultra output High output High output Industry › Burning hours: varies, max. 24/7› Need for energy reduction and reducing maintenance costs: avoiding production loss due to up-lamping activities › Withstand cold temperatures, vibrations› Light requirement: 200-500+ lux Best energy efficiency Best light output Finding the right T8 tube EM HF

Sufficient light › Key parameter for minimum required light is indicated in EN12464-1 in lux (lumens per square meter). › EN12464-1 prescribes minimum lux values, uniformity of illumination, and color rendering index, depending on the task. Lux Working, typing reading and data processing require sufficient light with a minimum lux level 1 m 2 Industrial › For Industry applications, there are many sub segments, each having their own specific standards. In the storage industry segment 300 lux counts as minimum value. › UGR standard for Industry applications is set at max 25 UGR. Supermarkets / Retail › For Supermarket and Retail applications 500 lux counts as minimum value.› UGR standard for Supermarket applications is also set at max 19 UGR. Finding the right output For ultra-output applications, our solutions meet lighting industry standards (EN12464-1) by providing high light levels without causing discomfort or glare . Lighting requirements EN12464-1 prescribes minimum lux values, uniformity of illumination and color rendering index, depending on the task Office / School / Healthcare › For Office applications 500 lux counts as minimum value for writing, typing, reading, data processing, conference and meeting rooms. › UGR standard for Office applications is set at max 19 UGR.› For most Healthcare applications 200 lux counts as minimum value.› UGR standard for applications is set at max 22 UGR. Final light quality, besides the LED tube, also depends on application circumstances like e.g. type of luminaire used and amount of daylight. Unified Glare Rating (UGR) The amount of glare, annoyance or reflection created by high or non-uniform brightness must be kept to a minimum 3700 lm 700 lux Discomfort glare › Sensation of annoyance or reflection caused by high or non-uniform brightness (eg. on computer screen). › Amount of glare is indicated in EN 12464-1 standard by Unified Glare Rating (UGR).

Finding the right output › Choose High Output LED tubes for high light output with the best lm/w High output for higher standards in car parks High Output LED tubes raise the standards in car parks even higher. With a light output of up to 3100 lumen they provide maximum visibility and safety – particularly important in car parks that operate right around the clock. 4,517 € Savings / year 6.1 months Payback period Number of lamps 85 Burning hours per year 8,760 Hrs Energy costs 0.12 Euro/kWh Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 588 lx 660 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72W 20W Average buying price installer ex VAT 2 € 27 € Total costs / year 40 € 26 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) Finding the right solution for your application

Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 687 lx 567 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72W 20W Average buying price installer ex VAT 2 € 27 € Total costs / year 40 € 14 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2500 - 3700 lumen Lux 687 lx 680 lx 567 lx Unified Glare Rating UGR 22,5 21,1 20,6 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72W 24W 20W Average buying price installer ex VAT 2 € 33 € Total costs / year 40 € 16 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) 2,258 € Savings / year 12.2 months Payback period Number of lamps 85 Burning hours per year 4,380 Hrs Energy costs 0.12 Euro/kWh 3,591 € Savings / year 16.5 months Payback period Number of lamps 150 Burning hours per year 4,380 Hrs Energy costs 0.12 Euro/kWh Ultra output for ultra efficient supermarkets and retail Beautiful lighting brings out the best in the products on display and enhances the shopping expe-rience for customers. But with lamps burning for up to 18 hours a day, food retailers want solutions that will reduce energy and maintenance costs – and show their green credentials in the best light. › Choose Ultra Output LED tubes for ultra efficiency in the most demanding supermarket and retail applications High output on the high street Retail stores and hospitality venues know light has the power to attract. It creates irresistible displays, brings brands to life and encourages customers to spend longer in store. With our LED tubes you can light up sales at the same time as reducing energy and maintenance costs. › Choose High Output LED tubes for high light output with the best lm/w MASTER LEDtube UO 1500 mm

Ultra output for ultra-efficient industry In ultra-demanding applications, our Ultra Output LED tubes take safety and performance to the next level. With a super bright light output of up to 3700 lumen they offer the best light output for maximum visibility and minimal maintenance. › Choose Ultra Output LED tubes for the best light output in the most demanding industry applications High output for highly-efficient industry Industry demands high visibility, efficiency and safety. But 24/7 operations can run up expensive energy bills. Our solutions save energy and maintain their energy efficiency, even in extremely cold conditions. So they reduce maintenance costs and avoid expensive production down time. › Choose High Output LED tubes for high light output with the best lm/w Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 545 lx 326 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72W 20W Average buying price installer ex VAT 2 € 27 € Total costs / year 40 € 14 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) 10,628 € Savings / year 12.2 months Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 0.12 Euro/kWh Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2500 - 3700 lumen Lux 545 lx 476 lx 326 lx Unified Glare Rating UGR 24 23,2 22,6 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72W 24W 20W Average buying price installer ex VAT 2 € 33 € Total costs / year 40 € 16 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) 9,577 € Savings / year 16.5 months Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 0.12 Euro/kWh MASTER LEDtube UO 1500 mm

Ultra output for ultra-efficient offices Office and school lighting can influence energy levels, performance and wellbeing. Our solutions shine with impressive, high quality light to create the most comfortable ambience that complies with all office norms and still saves on energy. So business is always a pleasure. › Choose Ultra Output LED tubes for the best light output in the most demanding office and healthcare applications High output for highly efficient offices With a light output of up to 3100 lumen, our High Output LED tubes provide brilliant light quality with the best lumen per watt. A simple switch for offices and healthcare settings that saves on energy but feels bright and welcoming. › Choose High Output LED tubes for high light output with the best lm/w Fluorescent TL-D 1500 mm MASTER LEDtube HO 1500 mm High Output 2100 - 3100 lumen Lux 807 lx 607 lx Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 64% Energy savings 72W 20W Average buying price installer ex VAT 2 € 27 € Total costs / year 40 € 14 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) 10,628 € Savings / year 12.2 months Payback period Number of lamps 400 Burning hours per year 4,380 Hrs Energy costs 0.12 Euro/kWh Fluorescent TL-D 1500 mm MASTER LEDtube UO 1500 mm MASTER LEDtube HO 1500 mm Ultra Output 2500 - 3700 lumen Lux 807 lx 725 lx 607 lx Unified Glare Rating UGR 17,1 17,8 17,2 Lifetime Longer lifetime 15,000 Hrs 50,000 Hrs 50,000 Hrs 64% Energy savings 72W 24W 20W Average buying price installer ex VAT 2 € 33 € Total costs / year 33 € 13 € Based on the European average of 12 cent/kW hour (including maintenance and lamp replacement cost) 1,989 € Savings / year 19.9 months Payback period Number of lamps 100 Burning hours per year 3,640 Hrs Energy costs 0.12 Euro/kWh MASTER LEDtube UO 1500 mm Calculate your own savings on www.philips.com/ledtube Currently only available for T8 LED tube

Case study 60% energy savings for shipbuilding company Time to replace the existing fluorescent lighting made it the perfect moment to change to energy-efficient and maintenance-free LEDs for Verhoef Access Technology (Aalsmeerderbrug, North Holland). Facility Manager Dick Verhoef turned to Technische Unie (Haarlem), who, after comparing the various suppliers, chose Philips’ MASTER LEDtubes. Verhoef installed around 2,100 LEDtubes in its factory halls. Despite the tubes’ bright output, they consume only 31 W (1,700 units) and 20 W (400 units). Removing the capacitors from the existing fittings brought extra energy savings, giving an ROI of just 18 months. Uniform warm light, no glare ... Verhoef is a worldwide manufacturer of lifeboats and access installations on gangways for boats. Every product leaving the factory has to meet the highest international quality and safety standards. The slanted walls of ships must be sanded during production, and workers have to work at heights. Lighting therefore needs to be of the highest quality, and must not hinder the work in any way. It did even better than that, as Dick Verhoef remarked: “the uniform warm light provided a pleasant work environment.” ... and no need to replace for 17 years Rather than replacing fluorescents every four years, Verhoef won’t have to replace the LEDs for 17 years. With the factory spaces being 8 meters high that means nobody will have to climb scaffolding for the next 17 years. By then, the LEDtubes will have paid for themselves nearly 12 times over from energy savings alone – even ignoring maintenance and other savings. Lower heat emissions from the LED tubes eliminate the need for extra cooling and ventilation, especially in the summer – bringing even more cost savings. The customer used to have to replace tubes every four years, but this will no longer be necessary for the next seventeen years. This creates pure profit, especially considering that the factory spaces are 8 metres high – it saves a lot of time and effort for the staff.” Ron Julio, Customer Relations Manager Technische Unie, Haarlem

MASTER LEDtube T5 Product type LED Rotatableend cap Lumenoutput Operation Beamangle CRI Colortemperature EOC1 pcs (C) Energylabel MASTER LEDtube (HF) W lm ˚ K 8718696 1500mm HO 26W 830 T5 Instant Fit 26 No 3700 HF 160 83 3000 68552500 A+ 1500mm HO 26W 840 T5 Instant Fit 26 No 3900 HF 160 83 4000 68554900 A++ 1500mm HO 26W 865 T5 Instant Fit 26 No 3900 HF 160 83 6500 68556300 A++ Technical specifications HF MASTER LEDtube T8 High Output Product type LED Rotatableend cap Lumenoutput Operation Beamangle CRI Colortemperature EOC1 pcs (C) Energylabel MASTER LEDtube (EM) W lm ˚ K 8718696 600mm HO 8W 830 T8 8 Yes 1000 EM & Mains 160 83 3000 69747400 A++ 600mm HO 8W 840 T8 8 Yes 1050 EM & Mains 160 83 4000 69749800 A++ 600mm HO 8W 865 T8 8 Yes 1050 EM & Mains 160 83 6500 69751100 A++ 900mm HO 12W 840 T8 12 Yes 1575 EM & Mains 160 83 4000 68708600 A++ 900mm HO 12W 865 T8 12 Yes 1575 EM & Mains 160 83 6500 68710900 A++ 1200mm HO 14W 830 T8 14 Yes 2000 EM & Mains 160 83 3000 68718500 A++ 1200mm HO 14W 840 T8 14 Yes 2100 EM & Mains 160 83 4000 68720800 A++ 1200mm HO 14W 865 T8 14 Yes 2100 EM & Mains 160 83 6500 68722200 A++ 1500mm HO 20W 830 T8 20 Yes 2900 EM & Mains 160 83 3000 68712300 A++ 1500mm HO 20W 840 T8 20 Yes 3100 EM & Mains 160 83 4000 68714700 A++ 1500mm HO 20W 865 T8 20 Yes 3100 EM & Mains 160 83 6500 68716100 A++ MASTER LEDtube (HF) W lm ˚ K 8718696 600mm 10.5W 830 T8 InstantFit 10.5 Yes 1000 HF 160 83 3000 5965900 A+ 600mm 10.5W 840 T8 InstantFit 10.5 Yes 1050 HF 160 83 4000 5967300 A++ 600mm 10.5W 865 T8 InstantFit 10.5 Yes 1050 HF 160 83 6500 5969700 A++ 1200mm HO 14W 830 T8 InstantFit 14 Yes 2000 HF 160 83 3000 68752900 A+ 1200mm HO 14W 840 T8 InstantFit 14 Yes 2100 HF 160 83 4000 68748200 A++ 1200mm HO 14W 865 T8 InstantFit 14 Yes 2100 HF 160 83 6500 68750500 A++ 1500mm HO 20W 830 T8 InstantFit 20 Yes 2900 HF 160 83 3000 68758100 A+ 1500mm HO 20W 840 T8 InstantFit 20 Yes 3100 HF 160 83 4000 68754300 A++ 1500mm HO 20W 865 T8 InstantFit 20 Yes 3100 HF 160 83 6500 68756700 A++ EM HF 3000 / 4000 / 6500 G5 50,000 H 160° BEAM ANGLE 17 1447 1462 DIMENSIONS NON-DIMMABLE 3000 / 4000 / 6500 G13 50,000 H 160° BEAM ANGLE 27.3 1198 1498 DIMENSIONS NON-DIMMABLE DIMMABLE ROTATABLE (ROT) EM HF HF NON-ROTATABLE (ROT) What’s new T5 · High Lm/W performance 150 Lm/W· Small form factor· High compatibility Level HF ballast

MASTER LEDtube T8 Ultra Output Product type LED Rotatableend cap Lumenoutput Operation Beamangle CRI Colortemperature EOC1 pcs (C) Energylabel MASTER LEDtube (EM) W lm ˚ K 8718696 1200mm UO 16W 830 T8 16 Yes 2300 EM & Mains 160 83 3000 68736900 A++ 1200mm UO 16W 840 T8 16 Yes 2500 EM & Mains 160 83 4000 68738300 A++ 1200mm UO 16W 865 T8 16 Yes 2500 EM & Mains 160 83 6500 68740600 A++ 1500mm UO 24W 830 T8 24 Yes 3500 EM & Mains 160 83 3000 68742000 A++ 1500mm UO 24W 840 T8 24 Yes 3700 EM & Mains 160 83 4000 68744400 A++ 1500mm UO 24W 865 T8 24 Yes 3700 EM & Mains 160 83 6500 68746800 A++ MASTER LEDtube (HF) W lm ˚ K 8718696 1200mm UO 16W 830 T8 InstantFit 16 Yes 2300 HF 160 83 3000 68800700 A++ 1200mm UO 16W 840 T8 InstantFit 16 Yes 2500 HF 160 83 4000 68796300 A++ 1200mm UO 16W 865 T8 InstantFit 16 Yes 2500 HF 160 83 6500 68798700 A++ 1500mm UO 24W 830 T8 InstantFit 24 Yes 3500 HF 160 83 3000 68806900 A++ 1500mm UO 24W 840 T8 InstantFit 24 Yes 3700 HF 160 83 4000 68802100 A++ 1500mm UO 24W 865 T8 InstantFit 24 Yes 3700 HF 160 83 6500 68804500 A++ EM HF EM HF 3000 / 4000 / 6500 G13 50.000 H 160° BEAM ANGLE 27.3 1198 1498 DIMENSIONS NON-DIMMABLE ROTATABLE (ROT) MASTER LEDtube T8 Product type LED Rotatableend cap Lumenoutput Operation Beamangle CRI Colortemperature EOC1 pcs (C) Energylabel MASTER LEDtube (EM) W lm ˚ K 8718696 1800mm 25W 840 T8 25 Yes 3700 EM & Mains 160 85 4000 48037300 A+ EM EM 3000 / 4000 / 6500 G13 50,000 H 160° BEAM ANGLE 27.3 589 898 DIMENSIONS NON-DIMMABLE ROTATABLE (ROT) Protection starter Product type EOC 10 pcs (I) Accessory 8718291 Starter EMP 72928000 DIMENSIONS 34.5 21.5 Please refer to the site www.philips.com/ledtube for the latest information about ballast compatibility. Dimming a LED tube: please refer to the site www.philips.com/ledtube for the latest update on our InstantFit LED tube/dimming ballast compatibility information. DIMMABLE

www.philips.com/ledtube www.philips.com/masterledlamps © 2016 Philips Lighting Holding B.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Philips Lighting Holding B.V. or their respective owners.
