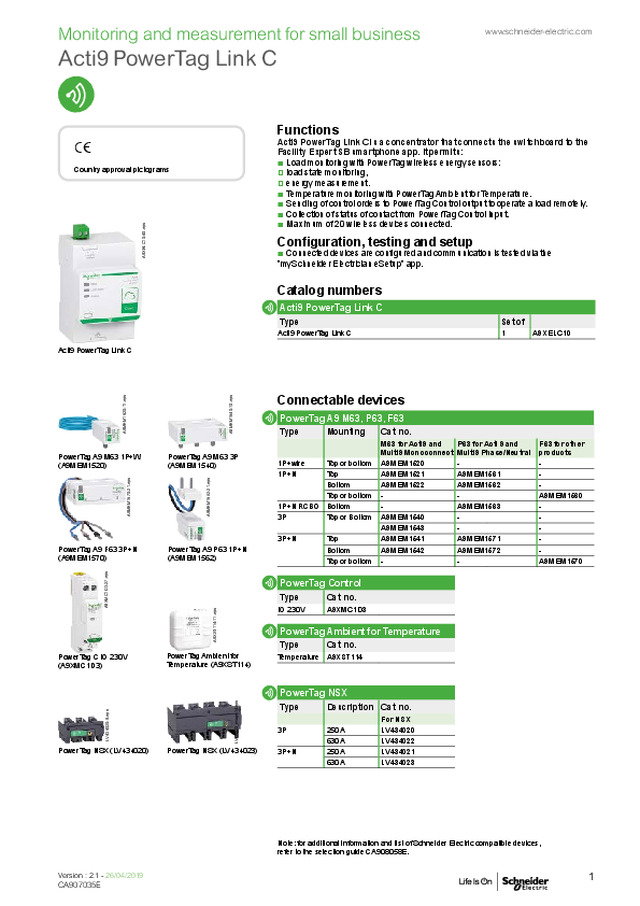

Monitoring and measurement for small business www.schneider-electric.com Acti9 PowerTag Link C Functions Acti9 PowerTag Link C is a concentrator that connects the switchboard to the Facility Expert SB smartphone app. It permits: bb Load monitoring with PowerTag wireless energy sensors: vv load state monitoring, vv energy measurement. bb Temperature monitoring with PowerTag Ambient for Temperature. bb Sending of control orders to PowerTag Control output to operate a load remotely. bb Collection of status of contact from PowerTag Control input. bb Maximum of 20 wireless devices connected. e A9XELC10-40.eps Country approval pictograms Configuration, testing and setup bb Connected devices are configured and communication is tested via the "mySchneider Electrician eSetup" app. Catalog numbers Acti9 PowerTag Link C Type Set of Acti9 PowerTag Link C 1 A9XELC10 A9XMC1D3-27.eps PowerTag A9 F63 3P+N (A9MEM1570) PowerTag C IO 230V (A9XMC1D3) A9MEM1562-21.eps PowerTag A9 M63 3P (A9MEM1540) PowerTag A9 P63 1P+N (A9MEM1562) Connectable devices PowerTag A9 M63, P63, F63 Type Mounting 1P+wire 1P+N Top or bottom Top Bottom Top or bottom 1P+N RCBO Bottom 3P Top or Bottom 3P+N Top Bottom Top or bottom Cat. no. M63 for Acti9 and P63 for Acti 9 and Multi9 Monoconnect Multi9 Phase/Neutral A9MEM1520 A9MEM1521 A9MEM1561 A9MEM1522 A9MEM1562 A9MEM1563 A9MEM1540 A9MEM1543 A9MEM1541 A9MEM1571 A9MEM1542 A9MEM1572 - F63 for other products A9MEM1560 A9MEM1570 PowerTag Control A9XST114-11.eps...
