Support with welded head plate 50x50x400 Aço PES135 - Poliéster preto RAL 9005

Support with welded head plate 50x50x400 Aço PES135 - Poliéster preto RAL 9005

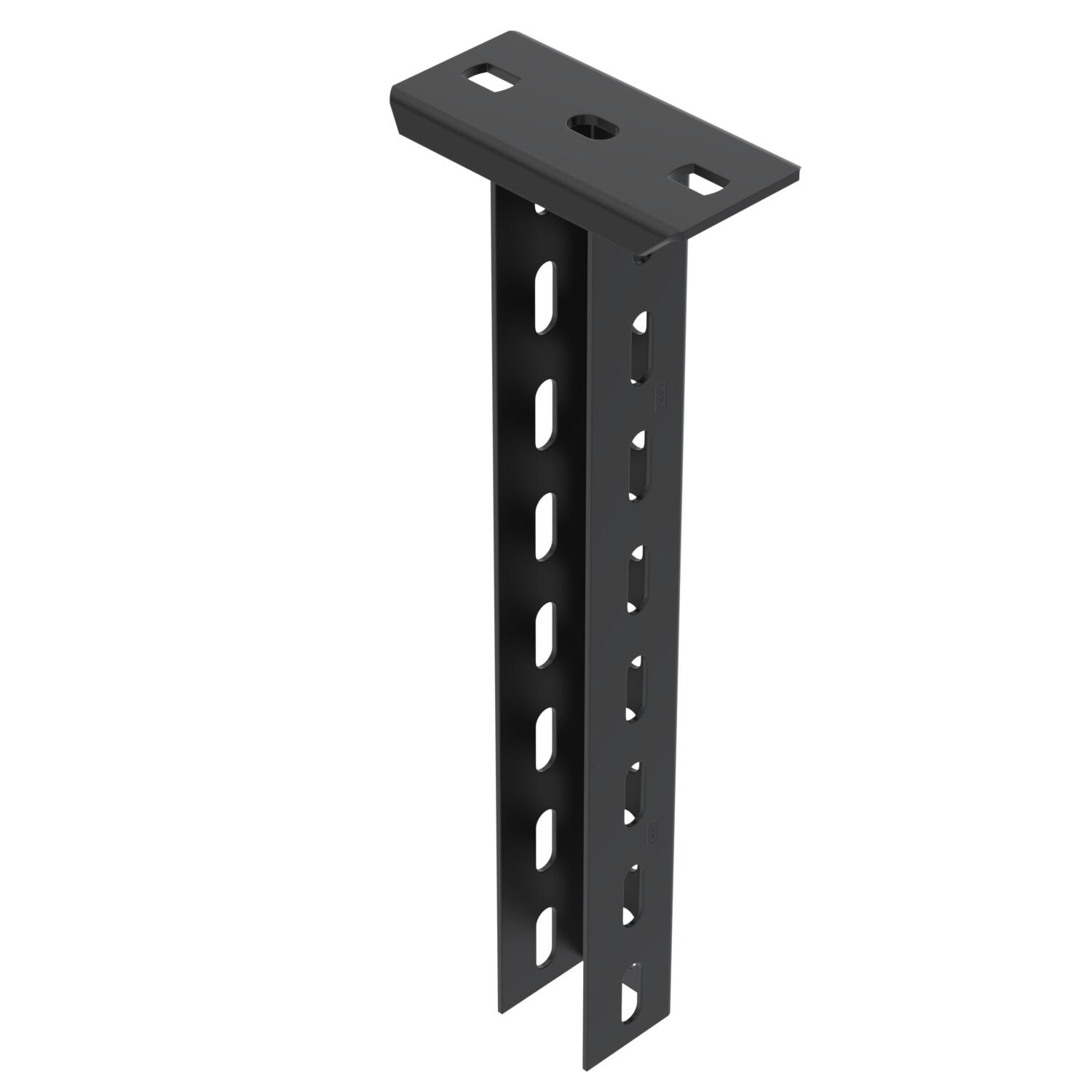

Suspended support made from U profile with welded-on head plate, perforated to 3 sides, for the creation of support constructions for cable trays. Suitable for mounting on horizontal concrete ceilings and steel supports. Wall and support bracket can be mounted on both sides of the U suspended support. Spacer DSK to insert, from bracket width 400 mm or when mounting the bracket on the end of the suspended support. With black powder coating.

Identificadores do produto

SKU: 6341684
EAN: 4012197468736
GTIN: 4012197468743
MPN: US 5 K 40 FTK SW

Especificações

Cor Outro
Peso 1.37 kg
Modelo Perfil em U
Material Aço
Comprimento 400 mm
Número RAL 9005
Altura do perfil 50 mm
Largura do perfil 50 mm
Capacidade de carga 10 kN
Temperatura de serviço
Mantém a funcionalidade em caso de incendio sim
