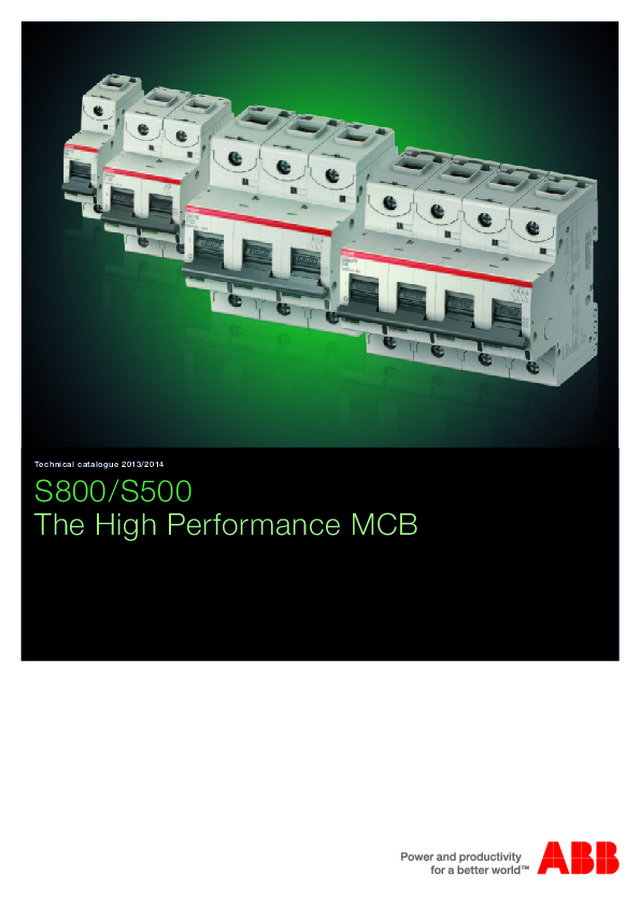

Catálogo técnico S800/S500

ABB

Catálogo técnico S800/S500

Publicado: 26 de março de 2014 · Categoria: Catálogos

Deste documento

Technical catalogue 2013/2014 S800/S500 The High Performance MCB 0/2 Applications | Technical catalogue high performance MCBs Table of content Overview page 0/4 1 Ordering details page 1/1 Properties page 2/1 2 Technical data page 3/1 Dimensional drawings page 4/1 Approvals page 5/1 S800 S500 Ordering details page 6/1 Properties page 7/1 Technical data page 8/1 Dimensional drawings page 9/1 Approvals page 10/1 3 4 5 6 7 8 9 10 Technical catalogue high performance MCBs | Applications 0/3 Overview S800 S800S S803S-KM S800S-UC S800N S800C S800B Tripping characteristics B, C, D, K KM UCB, UCK B, C, D B, C, D, K B, C, D, K Standards IEC/EN 60947-2, IEC/EN 60947-2, IEC/EN 60947-2 IEC/EN 60947-2, EN 60947-2, IEC 60947-2 IEC/EN 60898-1 IEC/EN 60898-1 EN 60898-1 Poles 14 3 14 14 14 14 Rated current Ie A 6 125 20 80 10 125 6 125 10 125 Char. B, C: 32 125 Char. D, K: 32 100 Rated frequency f Hz 50/60 50/60 DC 50/60 50/60 50/60 Rated insulation voltage Ui V AC 690 AC 690 DC 750 AC 690 AC 500 AC 440 acc. to IEC/EN 60664-1 Rated impulse withstand kV 8 8 8 8 8 4 voltage Uimp (1.2/50s) Overvoltage category IV IV IV IV IV III Pollution degree 3 3 1- and 2-pole: 3 3 3 3 3- and 4-pole: 2 Suitability for isolation yes yes yes yes yes yes Data acc. to IEC/EN 60898-1 Rated operational voltage Ue V AC 230/400 AC 230/400 AC 230/400 Rated short-circuit kA Char. B, C, D: 230/400V Char. B, C, D: capacity Icn 230/400V (10 80 A) = 20 kA 230/400 V = 15 kA (10 80 A) = 25 kA Service...
